Floorplan - 2016 Palomino Puma 31-DBTS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
![](https://assets-cdn.interactcp.com/interactrv/images/unit_photo_20160708063307440199371.JPG.pagespeed.ce.KVMOg8NK_j.jpg)
-
Sleeps 9
-
3 Slides
-
BunkhouseOutdoor Kitchen
-
34ft Long
-
8,325 lbs

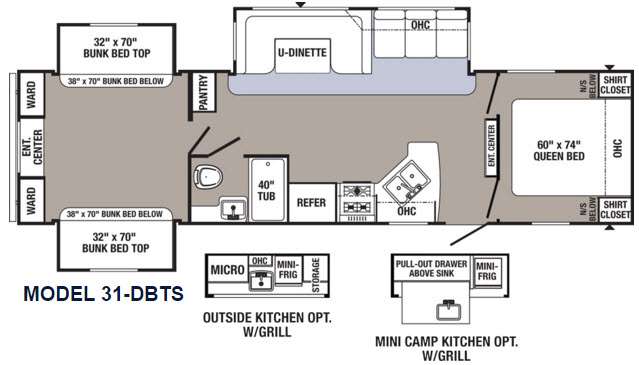

31DBTS Floorplan
Specifications
Sleeps | 9 | Slides | 3 |
Length | 34 ft 5 in | Ext Width | 8 ft |
Ext Height | 11 ft 1 in | Int Height | 6 ft 8 in |
Hitch Weight | 714 lbs | GVWR | 9950 lbs |
Dry Weight | 8325 lbs | Cargo Capacity | 1625 lbs |
Fresh Water Capacity | 51 gals | Grey Water Capacity | 42 gals |
Black Water Capacity | 32 gals | Furnace BTU | 30000 btu |
VIN | 4X4TPUG29GP058417 |
Description
The Puma 31-DBTS has a rear bunkhouse, a u-shaped dinette and lots of open space thanks to three slide outs.
The private rear bunk house includes slide outs opposite each other to really open up the floor space. Each slide has two bunk beds. The rear wall of this travel trailer holds an entertainment center flanked by wardrobes on each side.
Moving forward, a side aisle bathroom includes a toilet, vanity sink and tub.
The kitchen includes a refrigerator, three burner range, overhead cabinets, and an angled double sink. A pantry is next to the dinette.
The wall opposite the kitchen features a generous slide out with a u-shaped dinette and a sofa with overhead cabinets. The interior wall of the living area includes an entertainment center for viewing anywhere in this combined space.
The front bedroom includes two doors on each side, a queen bed, two shirt closets over nightstands, and overhead cabinets between them.
Outdoors you can fix meals or snacks on the optional mini camp kitchen that has a pullout drawer above the sink, a mini-frig, and a grill. Or you can choose the optional outside kitchen with a grill, microwave, overhead cabinet, mini-frig, and additional storage.
*Some features may be missing or unavailable on used or preowned RVs and are sold as is.
*Roof has small soft spot
Features
Standard Features (2016)
- Radius Entry Doors
- Powder Coated Frames
- EZ Lube Axles
- Tinted Safety Glass
- Clamp Ring Windows
- Double Entry Doors (where applicable)
- Pass-Thru Storage (where applicable)
- Rubber Roof - 12 Year Manufacturer’s Warranty
- 9" Three-Tier Steps
- Rain Gutters w/Large Drop Spouts
- Automotive Style Fender Skirts
- Radius Baggage Doors
- Darco Wrapped Underbelly
- One Piece, 24’ Sheet, 5/8" Floor Decking (25 Year Manufacturer’s Limited Warranty)
- 2 x 3 Flush Joists on 12" Centers
- Lighted Pass-Thru Exterior Baggage Compartments (where applicable)
- 2-20 lb. Gas Bottles
- 6 Gal. DSI Hot Water Heater
- Rack and Pinion Electric Slide System with Manual Override (Standard on all Slide-Out Models)
- Heavy Duty Storage Door for the Puma Den Option
- Clamp Ring Luggage Doors
- Large 14 x 34 Front Pass-Thru Baggage Doors (TT Only)
- Power Awning
- Colored Front Fiberglass Cap w/Diamond Plate (FW Only)
- Upgraded Colored Metal
Interior
- 80″ Interior Height
- Floor Ducted Heat
- 30,000 BTU Furnace
- Flush Floor Slide-Outs
- 16″ Deep Overhead Cabinets in Super-Slide Models
- Decorative Kitchen Splashboard
- Kitchen Ball Bearing Drawer Guides
- Spice Rack (Kitchen)
- Divided Silverware Drawer
- NEW High Rise Tea Pot Handle Kitchen Faucet
- Suburban 3-Burner, High Output Range
- Built-In Knife Rack
- NEW LED Lights
- Upgrade Window Treatment
- 55 amp Converter with Battery Charger
- AM/FM CD/DVD Bluetooth Stereo
- Push-Back Recliner(s) (Select Models)
- Wood Medicine Cabinet with Mirrored Door
- Power Vent in Bath
- Glass Shower Door (Select Models)
- 12V Shower LED Light
- Evergreen High Density Foam Mattress
- Bedroom Carpet (FW Only)
- Upgraded Soft Teddy Bear Bunk Mats
- Shirt Closet in Front Bedrooms
- Nightstands in Front Bedrooms
- Four Interior Décors
- Coat Hooks in Entry Way (Most Models)
- Satin Nickel Hardware, Light and Bath Fixtures
- Overhead cabinets in Super Slide Room (Select Models)
- Radius Dinette Seats
- Upgraded Carpet (16 oz. w/ Pad)
- Designer Window Treatments (Living Room)
- NEW Larger Countertops (Most Models)
Safety
- Carbon Monoxide Detector
- LP Leak Detector
- Fire Extinguisher
- Smoke Detector
Valued Shopper Package (Mandatory Upgrade)
- Back-Up Camera Ready
- Pre-Wired for Solar System
- LED Lighting
- 13,500 BTU Ducted Air Conditioner
- 6 cu. ft. Double Door Refrigerator
- Electric Awning w/LED Strip Light
- Beauflor® Woodgrain Linoleum w/ 7-Year Cold Crack Warranty
- Bedspread
- Bedroom TV Hookup
- TV Antenna w/Booster and Cable Hookup
- Mini Blinds
- ABS Tub Surround
- AM/FM CD/DVD Stereo w/Sound Bar
- Glass Range Cover
- 60/40 UNdermount Acrylic Kitchen Sink w/Cover(s)
Options
- Espresso Cabinets
- Solid Surface Countertops
- 6 Gallon Gas/Electric DSI Hot Water Heater
- Water Heater Bypass (Forced Option)
- 17″ Oven
- Microwave
- Create-a-Breeze™ Fan (Exchange)
- Extra Roof Vent
- 15,000 BTU Ducted A/C
- Outside Grill
- Night Shades
- Two (2) Stabilizer Jacks (FW)
- Four (4) Stabilizer Jacks (TT)
- Outside Shower
- Power Front Jacks (FW)
- 30 lb Gas Bottles and Cover
- 32″ LCD TV
- 39″ LED TV
- Spare Tire and Carrier
- PUMA Den (select floorplans)
- 5.1 Dolby Surround Sound System w/ AM/FM/DVD/Bluetooth Player and Plugin for iPod
- Bath Skylights
- Free-Standing Dinette (select floorplans)
- Tri-Fold Sofa (select floorplans)
- Roof Ladder
- Heated Tanks
- Stacked Bunk Option
- Upgraded iRelax® Mattress
- Enclosed Underbelly
Residential Package
- Residential Style 16.2 cu. ft. Refrigerator
- Patio Door
- Free-Standing Range
Puma Premier Edition Package
- Grab Bar
- 8 cu. ft. Refrigerator
- Night Shades
- Espresso Color Raised Cabinet Doors w/Refrigerator Inserts
- Pull-Down Faucet
- Stainless Steel Appliances
- Upgraded Galley Backsplash
- Upgraded Mattress
- Solid Surface Countertops
- Recessed Glass Stove Top
- Colored Fiberglass Cap
- Aluminum Rims
- Black Tank Flush
- Enclosed Underbelly
- 6 Gallon Gas/Electric Water Heater
- 32″ TV
- Outside Shower
- Outside Speakers
- 30 lb. Gas Bottles and Cover
Advantage Package
- Enclosed Underbelly
- Outside Speakers
- 6 Gallon Gas/Electric Water Heater
- Outside Shower
- Night Shades
- Spare Tire
- Microwave
Electric Power Package
- Electric Stabilizer Jacks (Two (2) on FW; Four (4) on TT)
- 3,500 lb. Electric Tongue Jack (TT)
- Two (2) Power Front Jacks (FW)
See us for a complete list of features & available options!
